Meet Airbus’s ZEROe Demonstrator

Courtesy of Airbus

In a previous digest, “Hydrogen-Powered Airliners — What Are The Possibilities?” we stated. “It is clear that all-electric aircraft’s feasibility in the airlines on a mass scale is still some time ahead of us, as the current battery and motor technologies are not up to the task of flying in the flight levels with hundreds of passengers. With current battery technology, the battery pack required would take up most of the space and weight limitation of an airliner. However, hydrogen-powered aircraft are another story.” In that digest, we looked at some articles relating to hydrogen-powered aircraft, their current development, and their possible application as airliners. Well, last week Airbus unveiled its ZEROe Demonstrator. The ZEROe Demonstrator is an Airbus A380 retrofitted with hydrogen fuel cells and a hydrogen engine. Below we have reproduced the press release from Airbus on the ZEROe demonstrator.

2022 marks a new and exciting phase for ZEROe — Airbus’ ambition to develop the world’s first zero-emission commercial aircraft by 2035. The multi-year demonstrator programme has officially been launched with the objective to test a variety of hydrogen technologies both on the ground and in the air.

Introducing the ZEROe demonstrator

The ZEROe demonstrator is a giant leap forward in our mission to bring zero-emission aviation to reality. Discover how the hydrogen combustion technology will work on the A380 test platform.

In 2015, one of the most powerful engines ever developed for an Airbus aircraft was approaching the final stages of development. But before it could be fitted to the A350–1000 aircraft for which it was destined, the engine needed to be flight and ground tested — a common practice for new technologies before entry-into-service.

That is why, on a pleasant autumn day, the aircraft equipped with the development engine took off from Airbus’ facilities in Toulouse. The test flight lasted 4 hours and 14 minutes, and analysed the performance of a wide range of power settings at altitudes of up to 35,000 feet.

But it was not the A350–1000 used for the test flight: it was the A380 MSN1 — the first-ever A380 to roll off the production line.

The A380 is the world’s largest and most spacious passenger jet ever built — a size that makes it ideally suited to the role of test platform.

Today, the A380 MSN1 test aircraft is earmarked for a new role: to take the lead on testing the technologies that will be vital to bringing the world’s first zero-emission aircraft to market by 2035.

“The A380 MSN1 is an excellent flight laboratory platform for new hydrogen technologies,” says Mathias Andriamisaina, Airbus ZEROe Demonstrator Leader. “It’s a safe and reliable platform that is highly versatile to test a wide range of zero-emission technologies. In addition, the platform can comfortably accommodate the large flight test instrumentation that will be needed to analyse the performance of the hydrogen in the hydrogen-propulsion system.”

Glenn Llewellyn introduces the ZEROe demonstrator

Airbus Vice-President, Zero-Emission Aircraft, Glenn Llewellyn takes us inside the A380 MSN1, an iconic aircraft that will act as a testbed for hydrogen combustion technology.

Demonstrators: testing tomorrow’s technologies today

A demonstrator aircraft is fundamental to developing new aviation technology. It is primarily used to test and prove the viability of designs, processes, fuels, materials and equipment, both on the ground and in the air. This information is then used to refine and certify the finished product. Demonstrators also serve to showcase innovation to a wider audience, from government officials and investors to journalists and the general public.

Airbus has a long track record of launching demonstrator programmes to test pioneering technology. The E-Fan family, for example, highlighted the potential for all-electric flight. The Vahana and CityAirbusdemonstrators have proven invaluable in furthering Airbus’ vision for sustainable urban air mobility. And, most recently, the E-Fan X was used to test the potential of hybrid-electric propulsion.

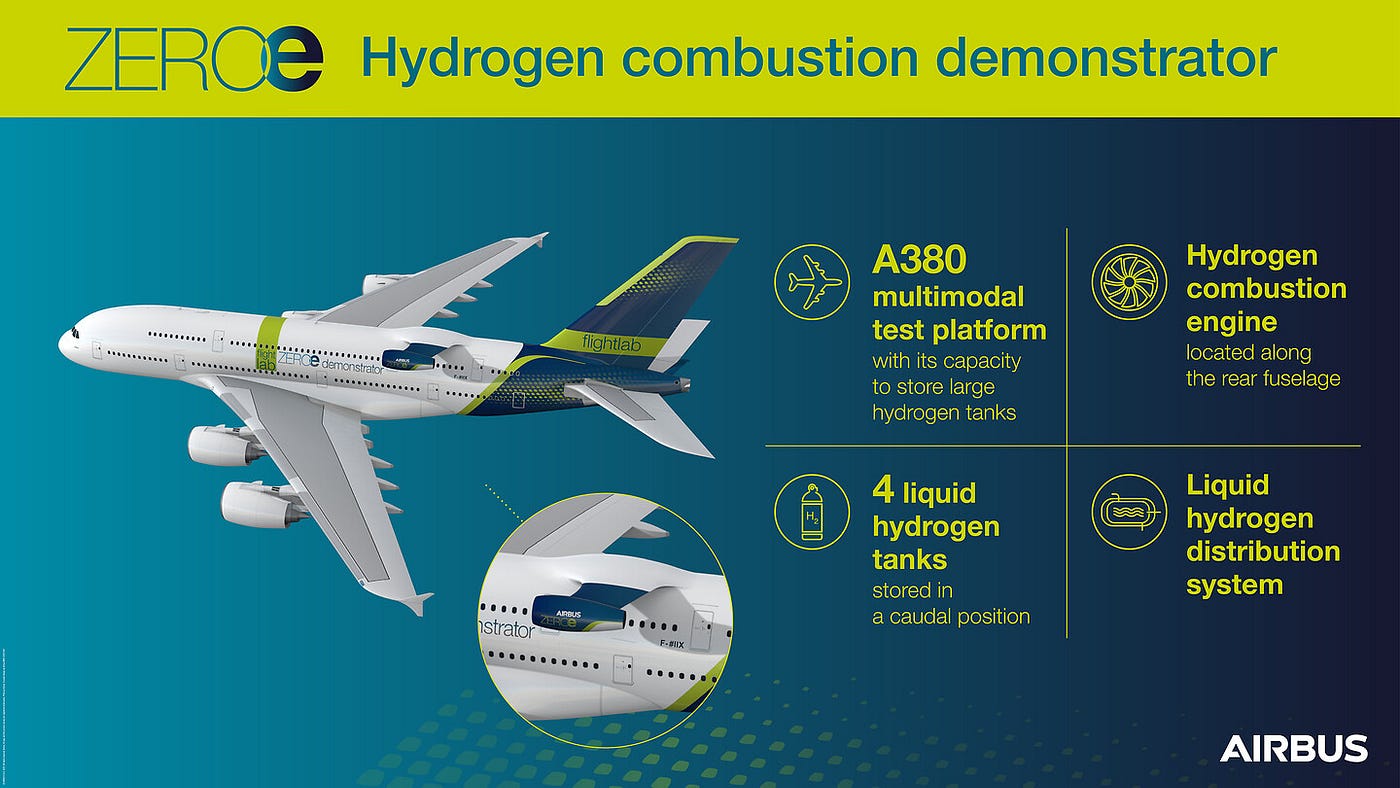

The ZEROe demonstrator will now be the next to test groundbreaking zero-emission technologies. It will carry four liquid hydrogen tanks in a caudal position, as well as a hydrogen combustion engine mounted along the rear fuselage. The liquid hydrogen distribution system will feed into a conditioning system in which the liquid hydrogen will transform into its gaseous form before it is introduced into the engine where it is combusted for propulsion.

“This isn’t Airbus’ first experience with hydrogen-powered flight,” Mathias explains. “From 2000 to 2002, Airbus was a key partner in the European Union’s Cryoplane research project. Building on these academic inquiries, we’re proud to take the testing of hydrogen combustion to the next level.”

Courtesy of Airbus

Collaborating for zero-emission aviation

The hydrogen combustion engine is a key part of the ZEROe demonstrator programme. Engine manufacturers have been working hand-in-hand with Airbus on demonstrator programmes for decades. And the ZEROe demonstrator will be no exception.

CFM International, a joint venture between GE and Safran, is set to develop the hydrogen combustion engine and prepare it for testing. Specifically, the company will modify the combustor, fuel system and control system of a GE PassportTM turbofan to run on hydrogen. The engine was selected due to its physical size, advanced turbo machinery, and fuel flow capability.

Each technology component — the hydrogen tanks, hydrogen combustion engine and liquid hydrogen distribution system — will be tested individually on the ground. Then, the complete system will be tested first on the ground and then subsequently in flight. The first flight is expected to take place in the next five years.

The A380 MSN1 is an excellent flight laboratory platform for new hydrogen technologies. It’s a safe and reliable platform that is highly versatile to test a wide range of zero-emission technologies. — Mathias Andriamisaina, Airbus ZEROe Demonstrator Leader

Thank you for reading this On Aviation™ week’s digest. Please take the liberty of sharing your thoughts on what you believe is the future of hydrogen-powered aircraft in the airlines.
